ACCESSORIES

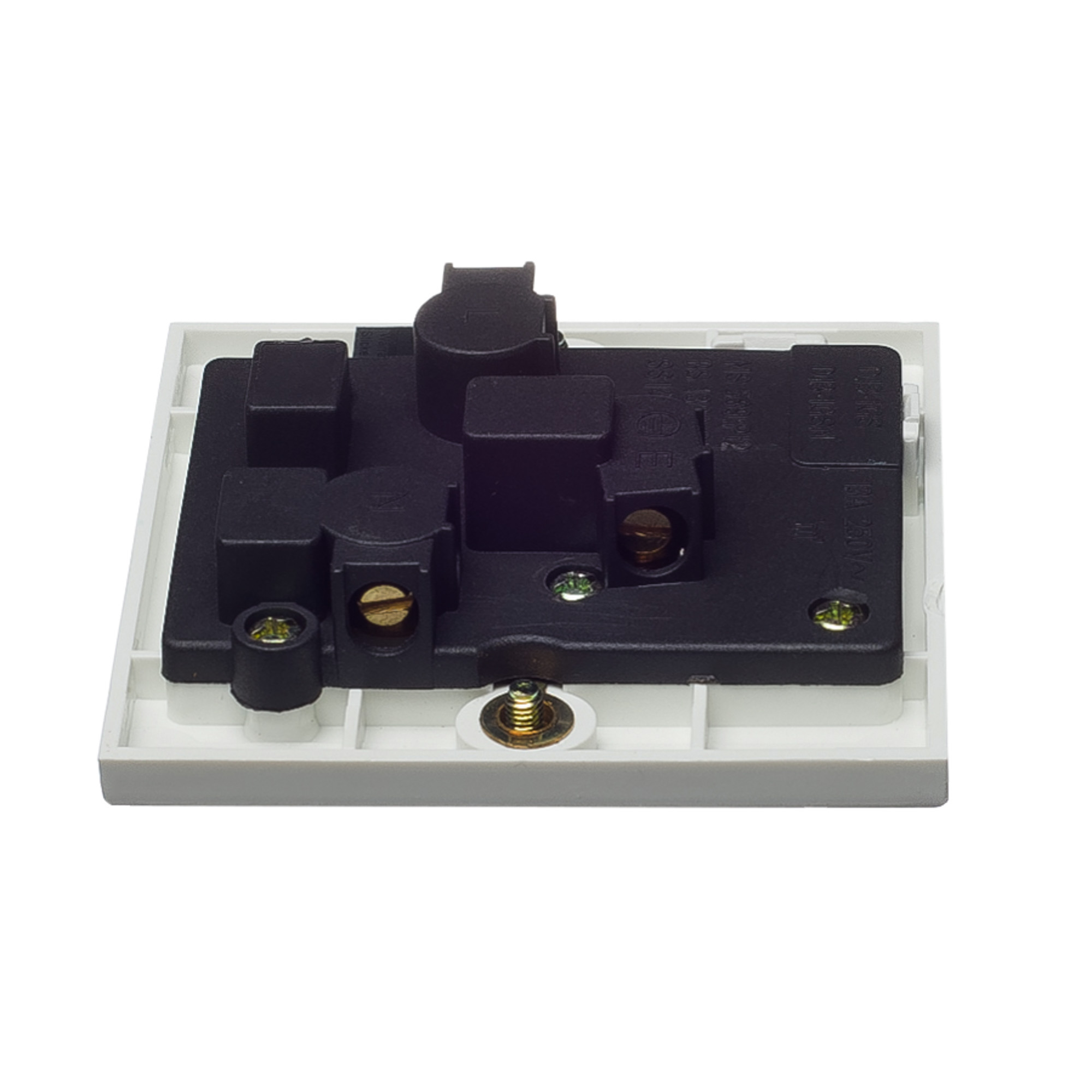

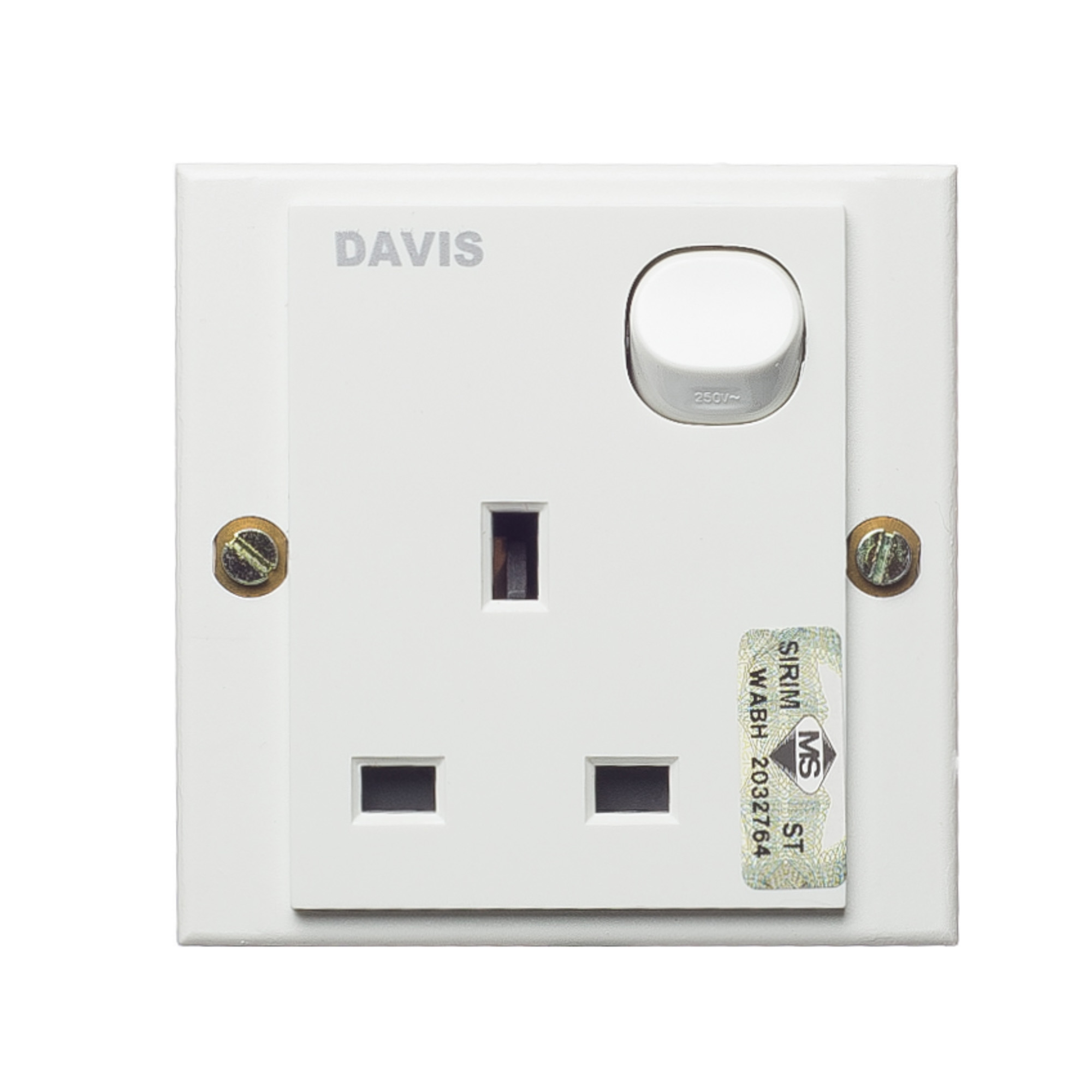

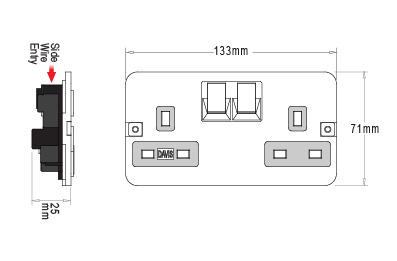

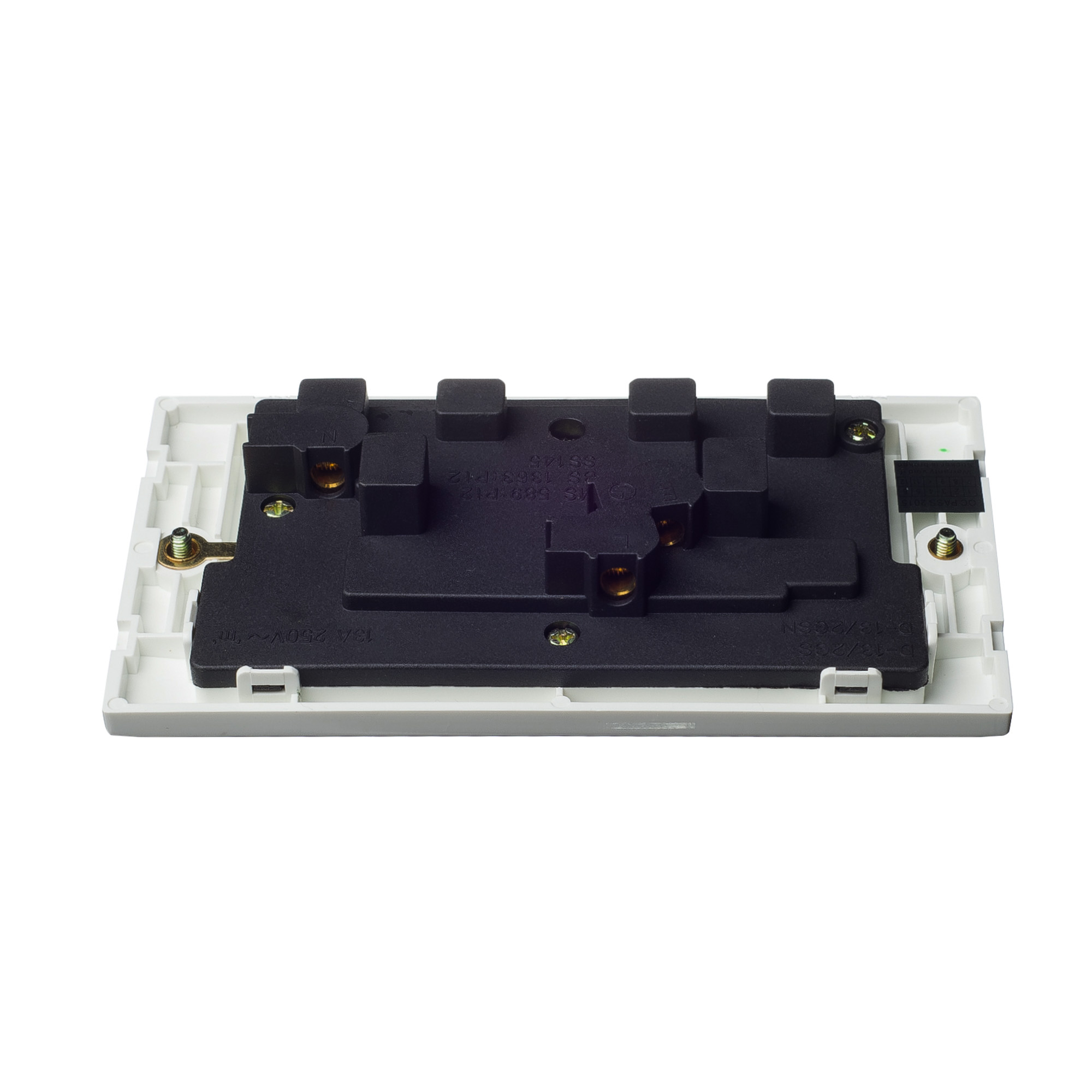

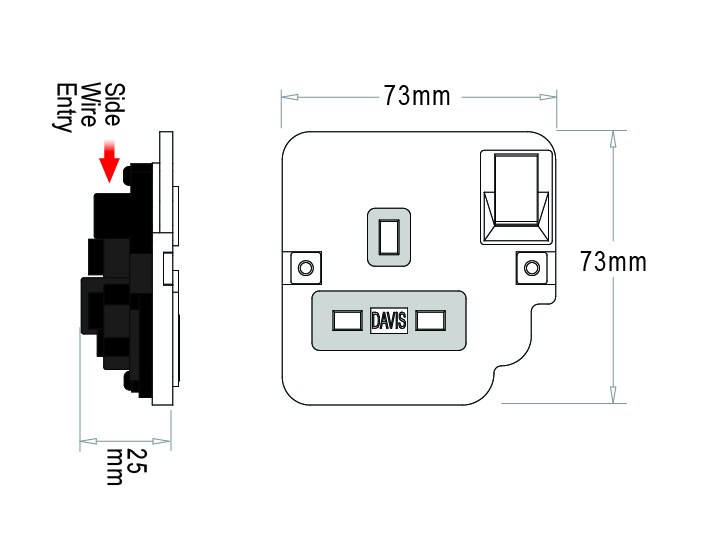

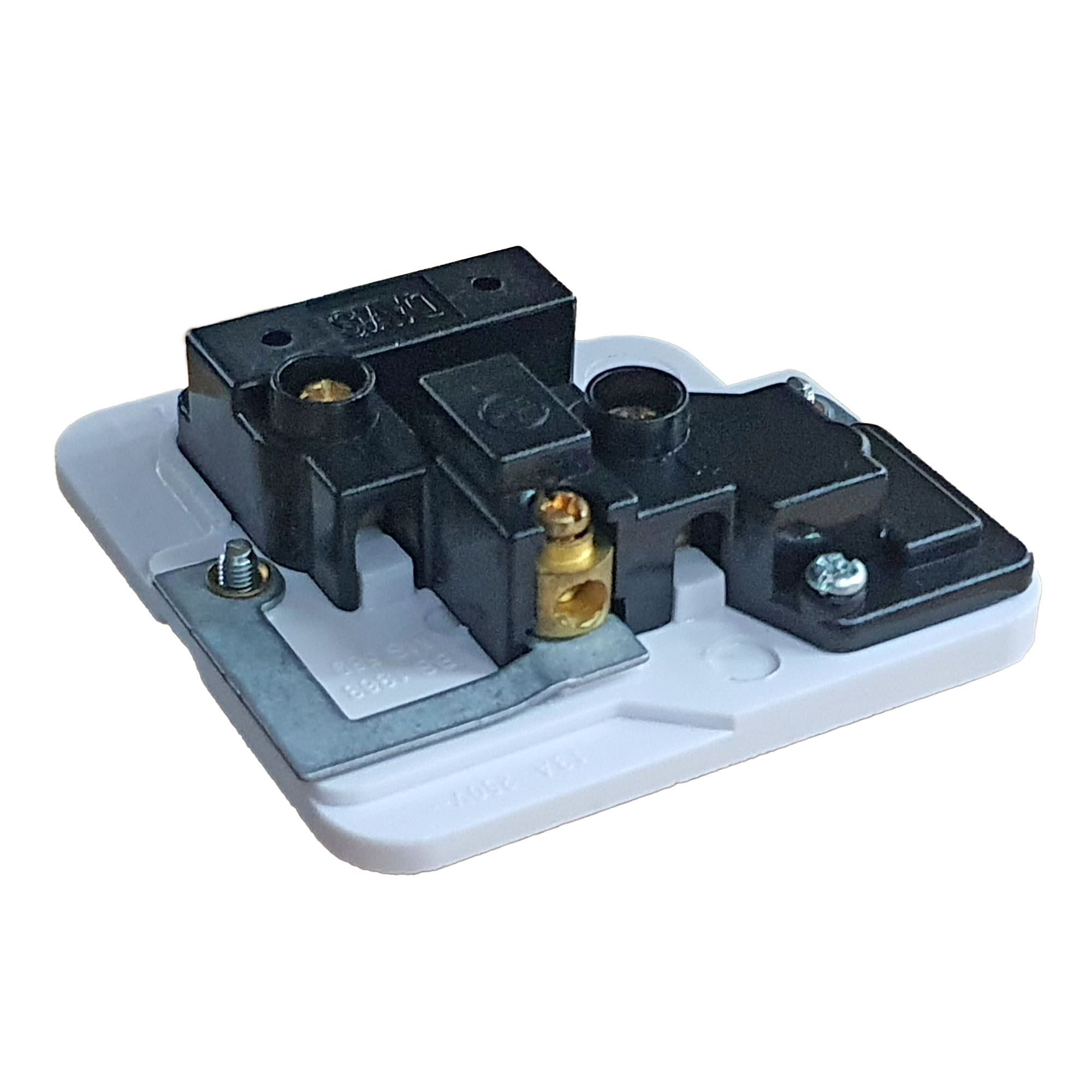

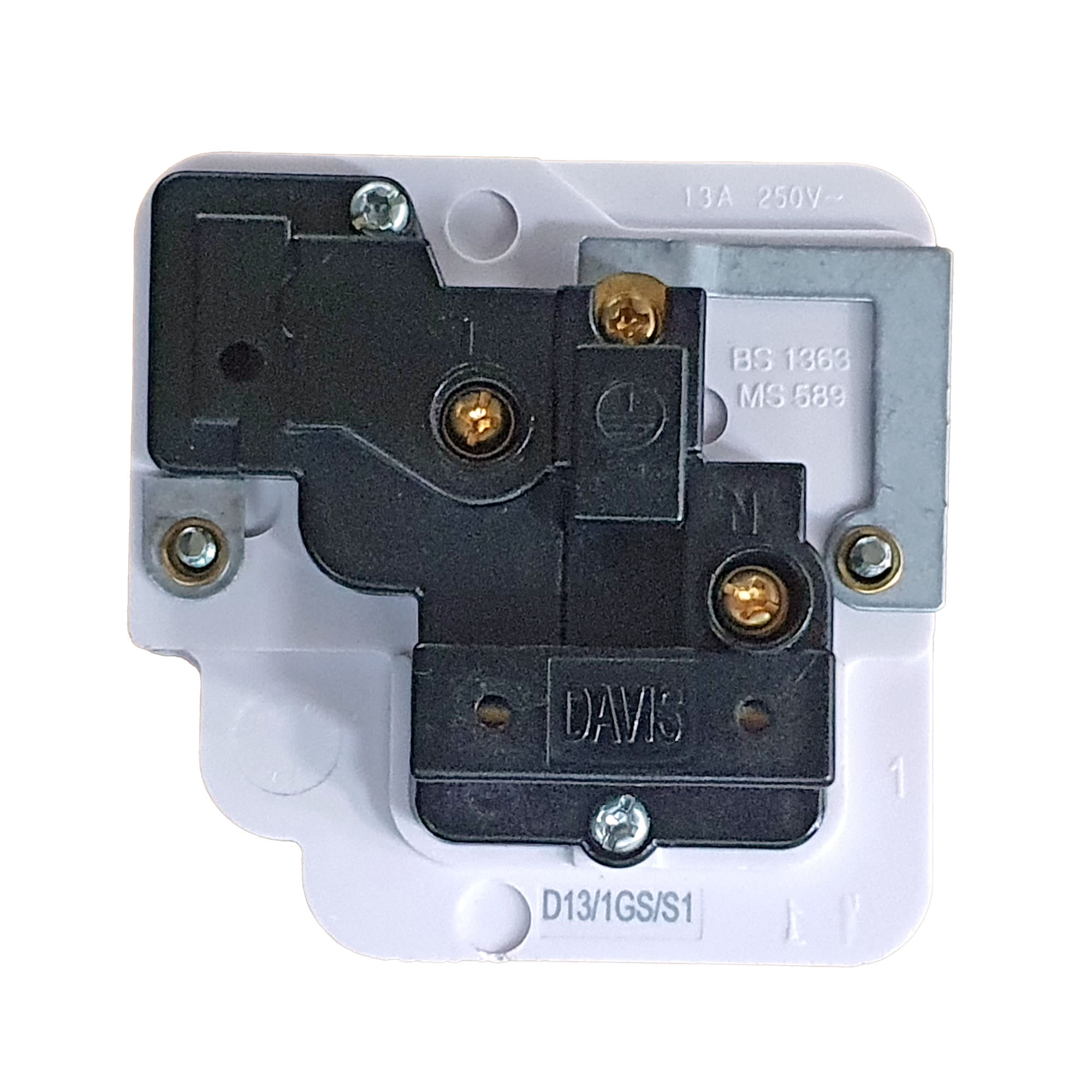

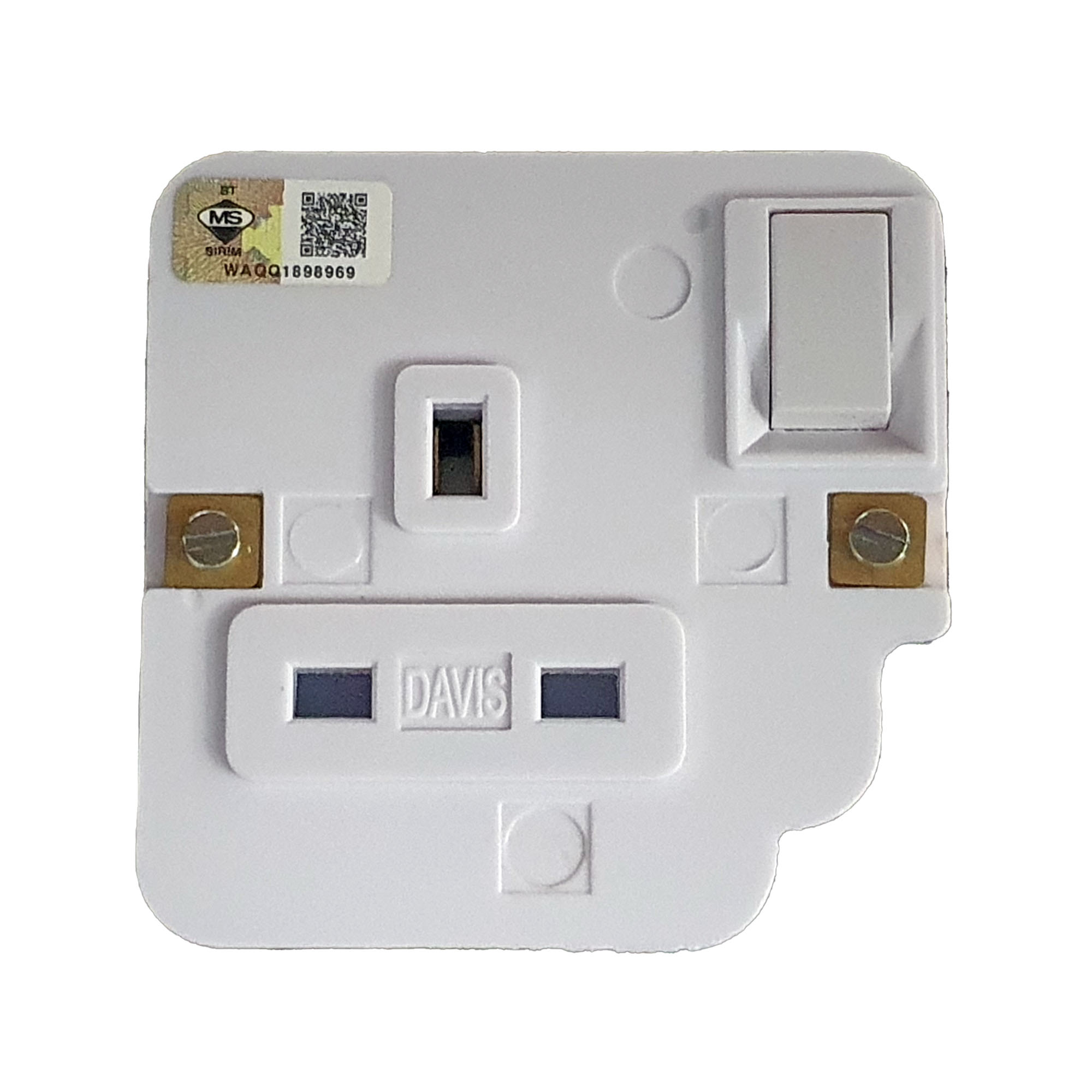

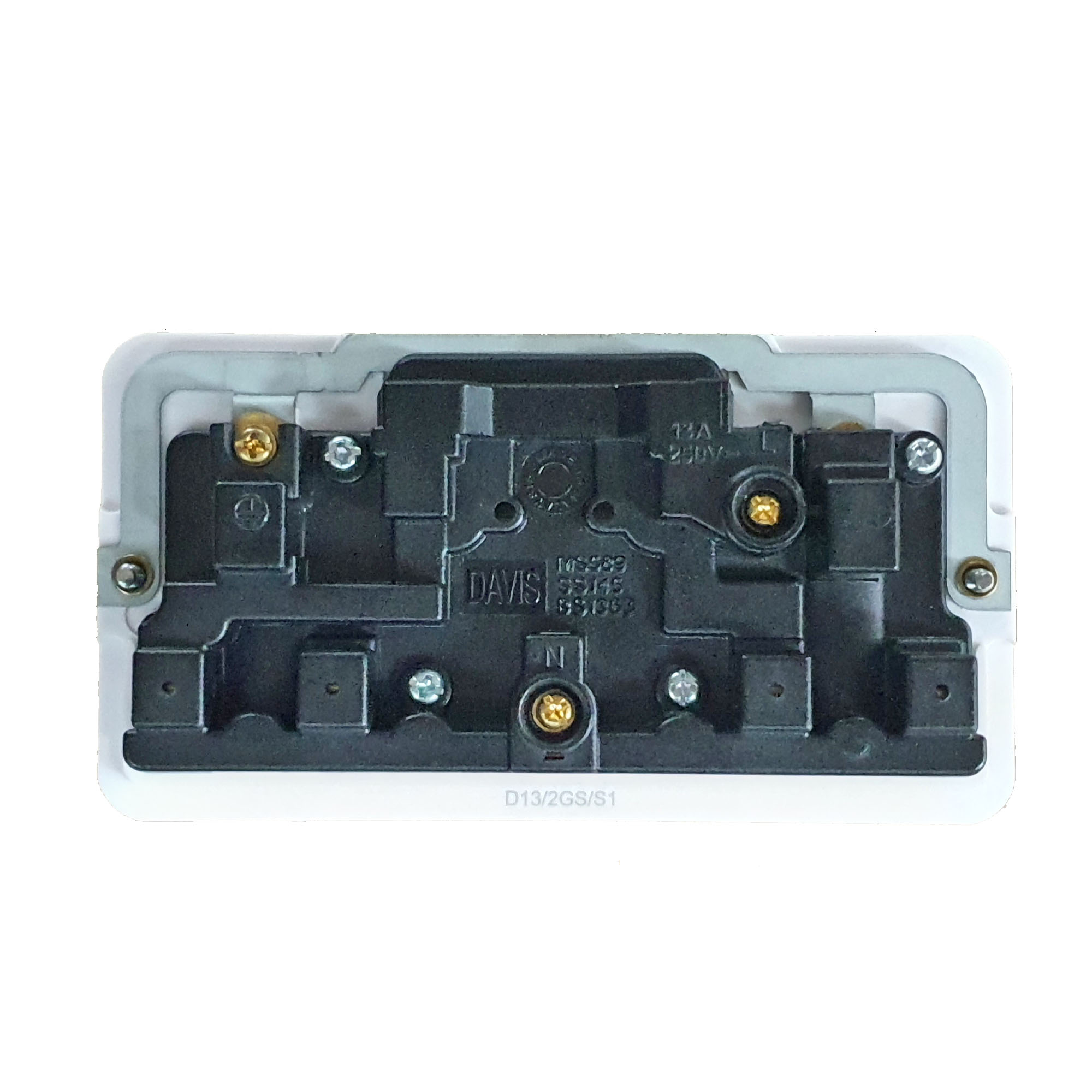

13A Switched Socket Outlets – Side Wire Entry
DAVIS one and two gang 13A Switched Socket Outlets are specially designed to be slim (24mm) with side wire entries to suit underfloor service boxes.
Rating / Standard: 240V, 13A a.c / BS 1363 : Part 2
3 terminals to accommodate: 4 x 2.5mm² cables each or 3 x 4.0mm² cables each
Approved by: JKR & Suruhanjaya Tenaga
| Model | Description |

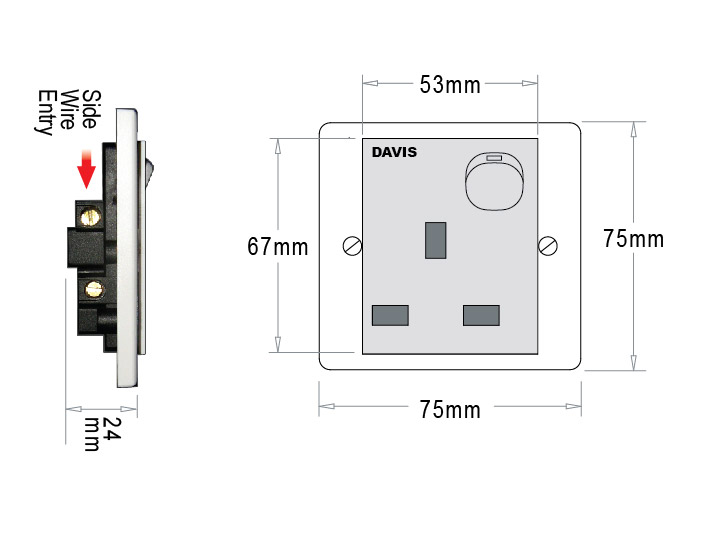

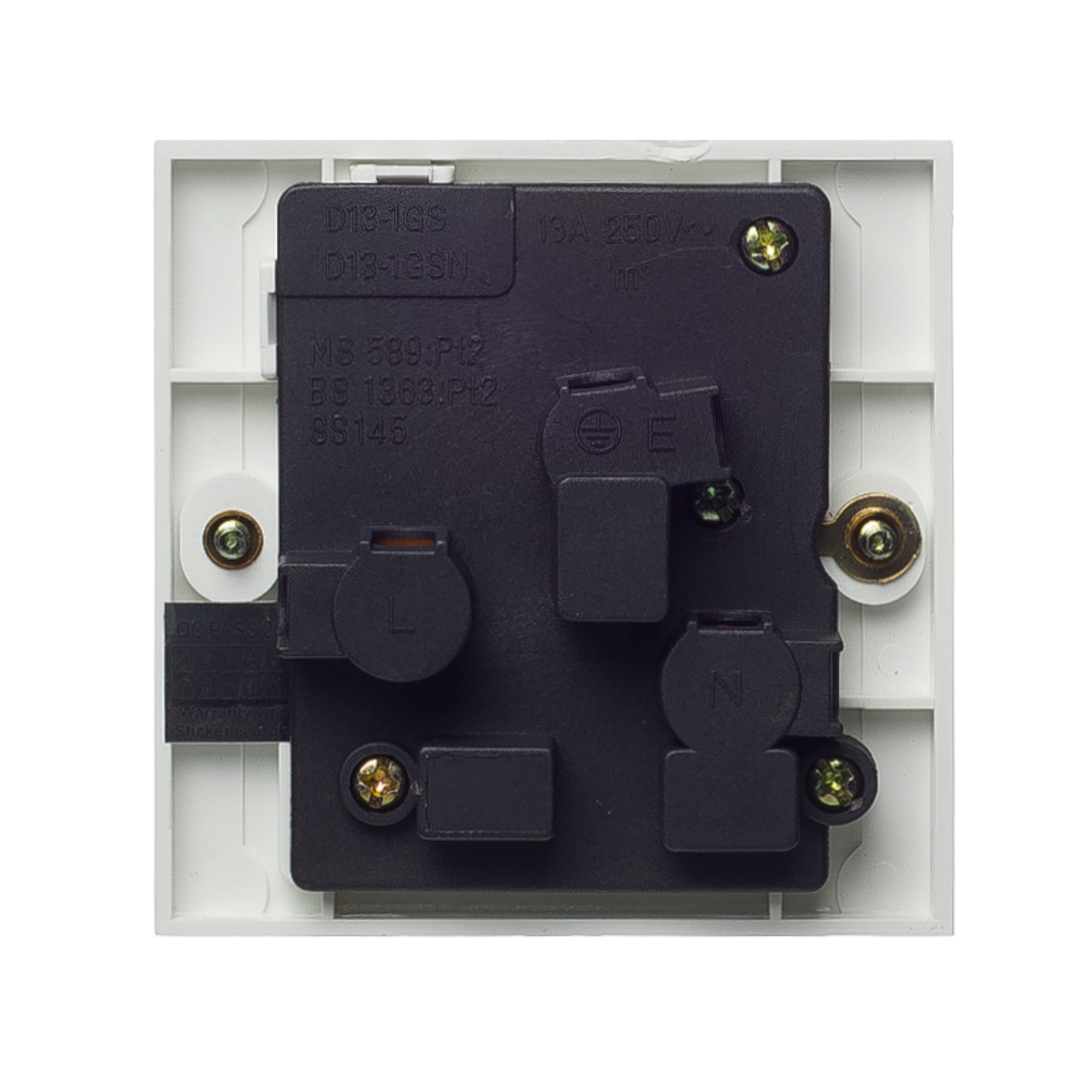

| D13/1GS | 1 Gang 13A Switched Socket |

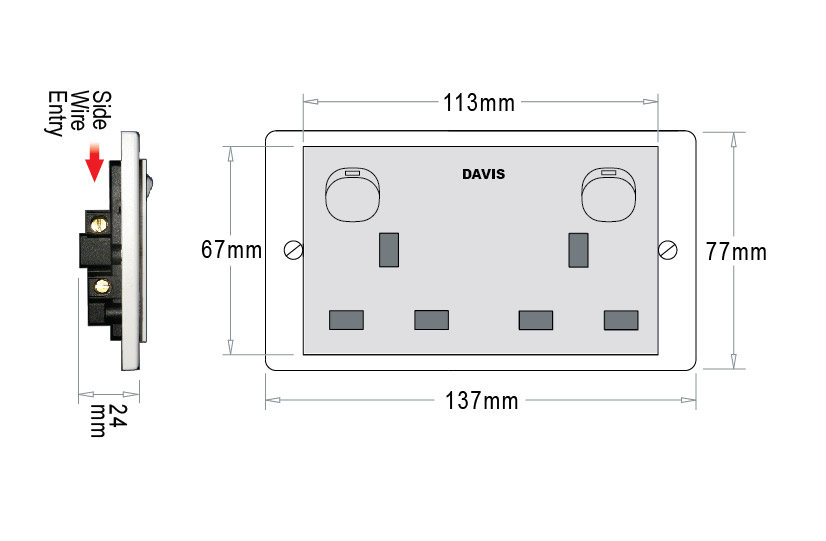

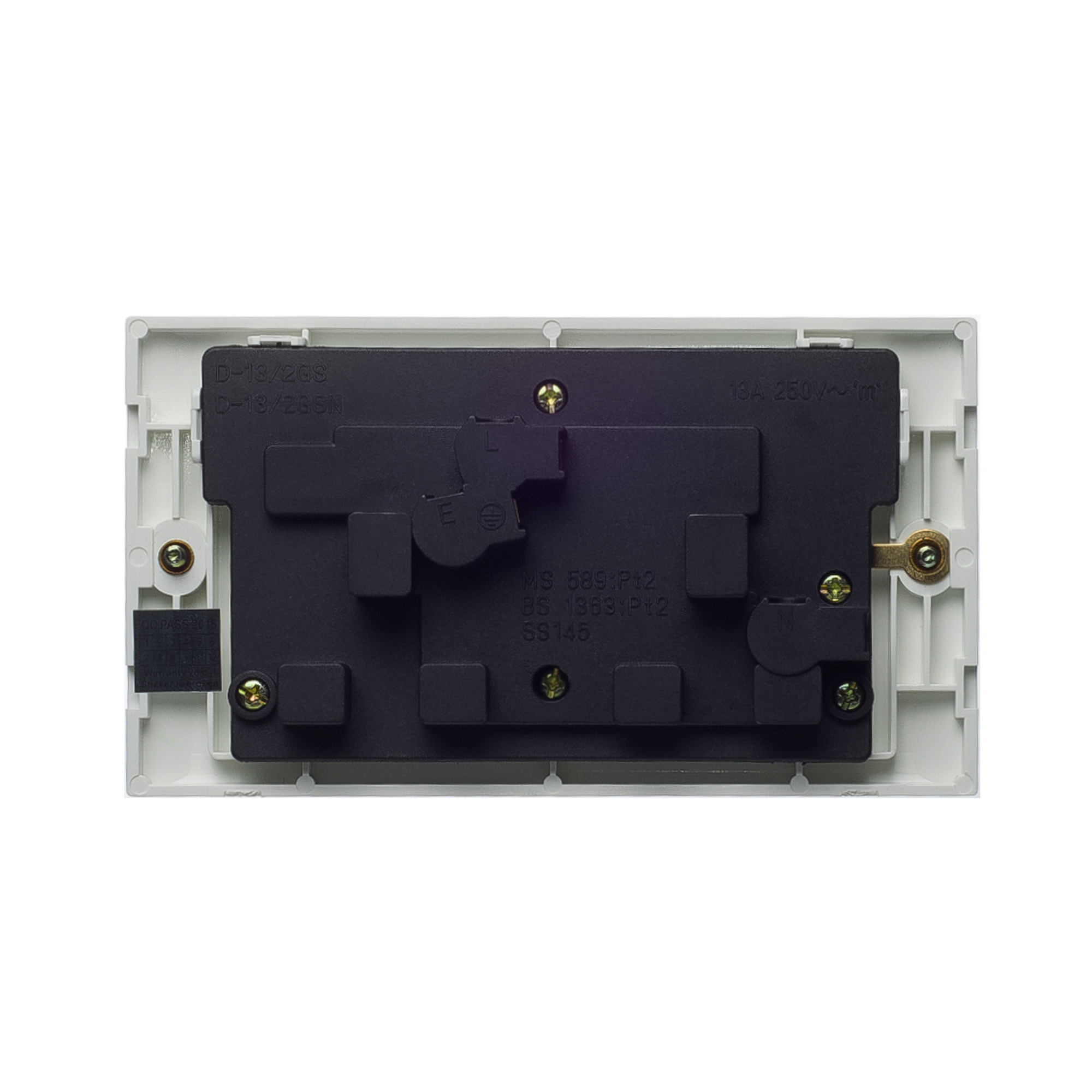

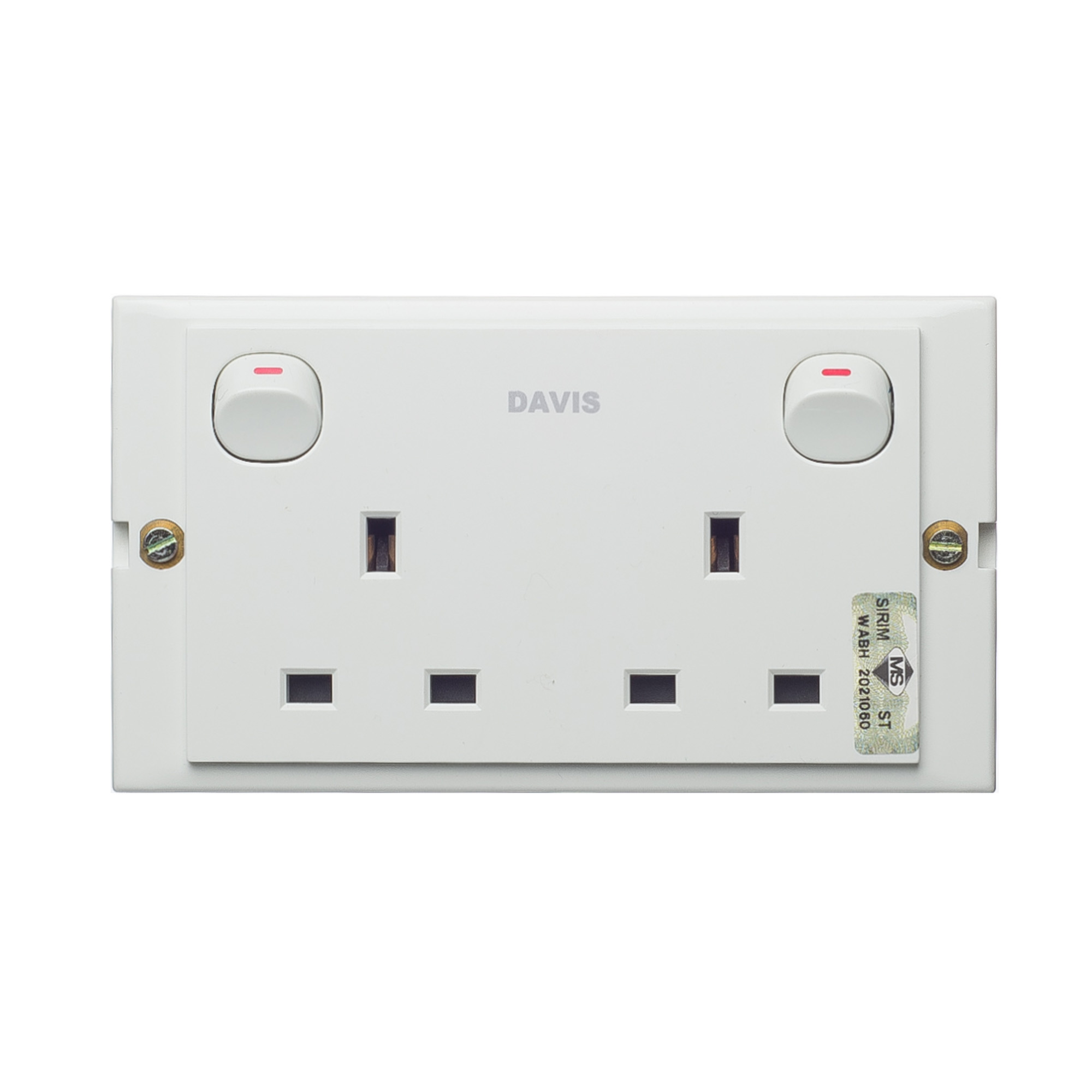

| D13/2GS | 2 Gang 13A Switched Socket |

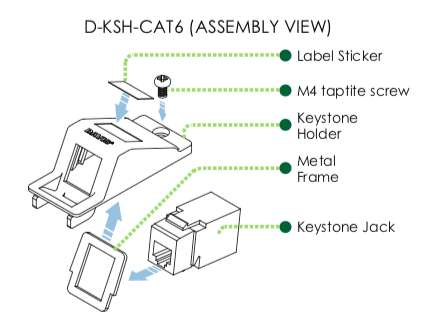

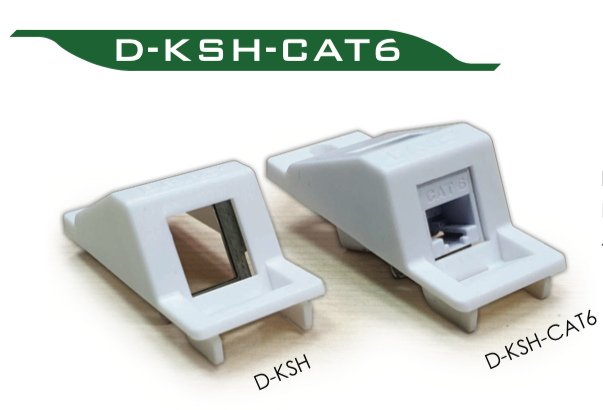

Data & Telephone Keystone Modules
DAVIS latest Keystone Module for RJ45 & RJ11 data outlets are specially designed to suit underfloor service boxes.
Product Type : Keystone Module
Panel Cut-out : 22.5 x 57 mm (0.89 x 2.24 in)
| Model | Description |
| D-KSH-CAT6 |
DAVIS Keystone Module, Angled holder, RJ45, Category 6 Unshielded, UTP 90 ̊, 4 Pairs, White |

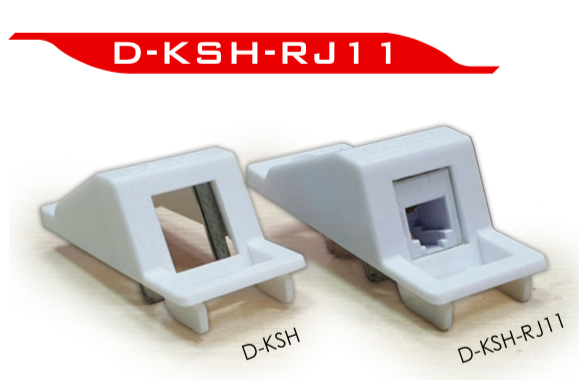

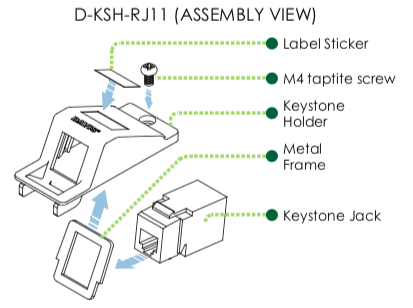

| D-KSH-RJ11 |
DAVIS Keystone Module, Angled holder, RJ11, Category 3 Unshielded, UTP 90 ̊,3 Pairs, White |
Interested in a Product Catalogue?
Includes:
- product details
- detailed technical specifications
- layout designs
- product images
- additional accessories

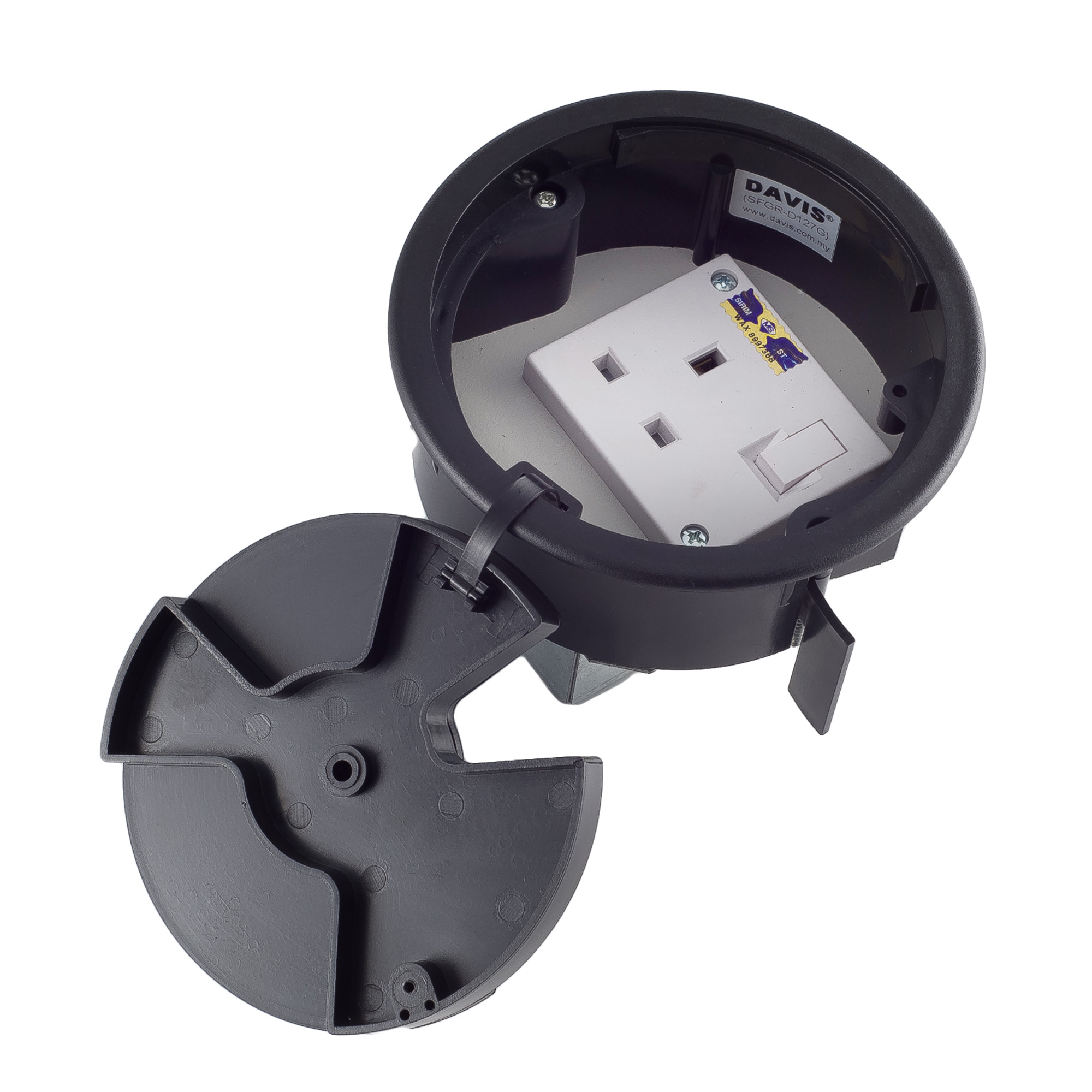

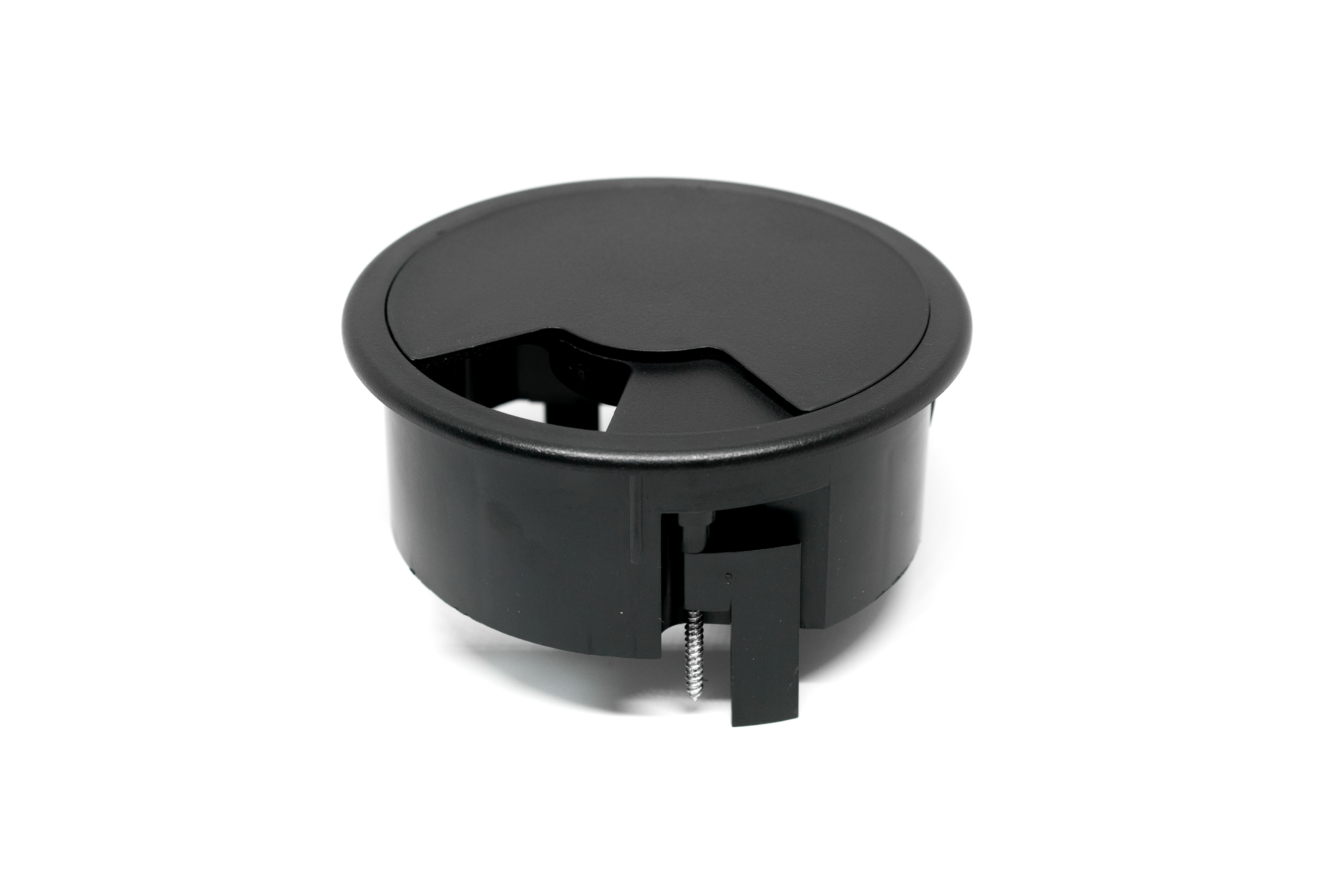

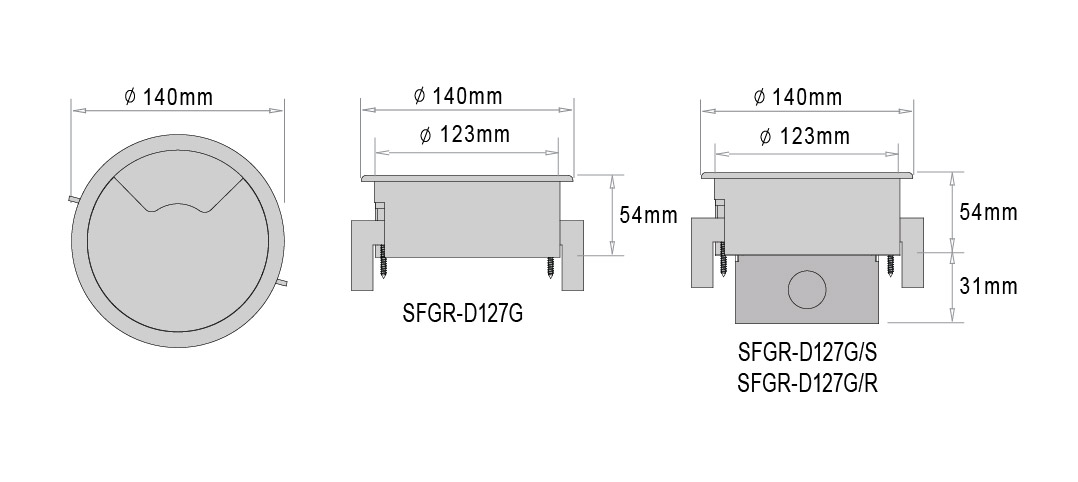

Service Access Grommets
DAVIS Service Access Grommet provides a convenient and low-cost solution to data, power and voice services for raised access floors. Recommended cut-out hole is 127mm.
| Model | Description |
| SFGR-D127G | 5″ Service Access Grommet w/o Box |

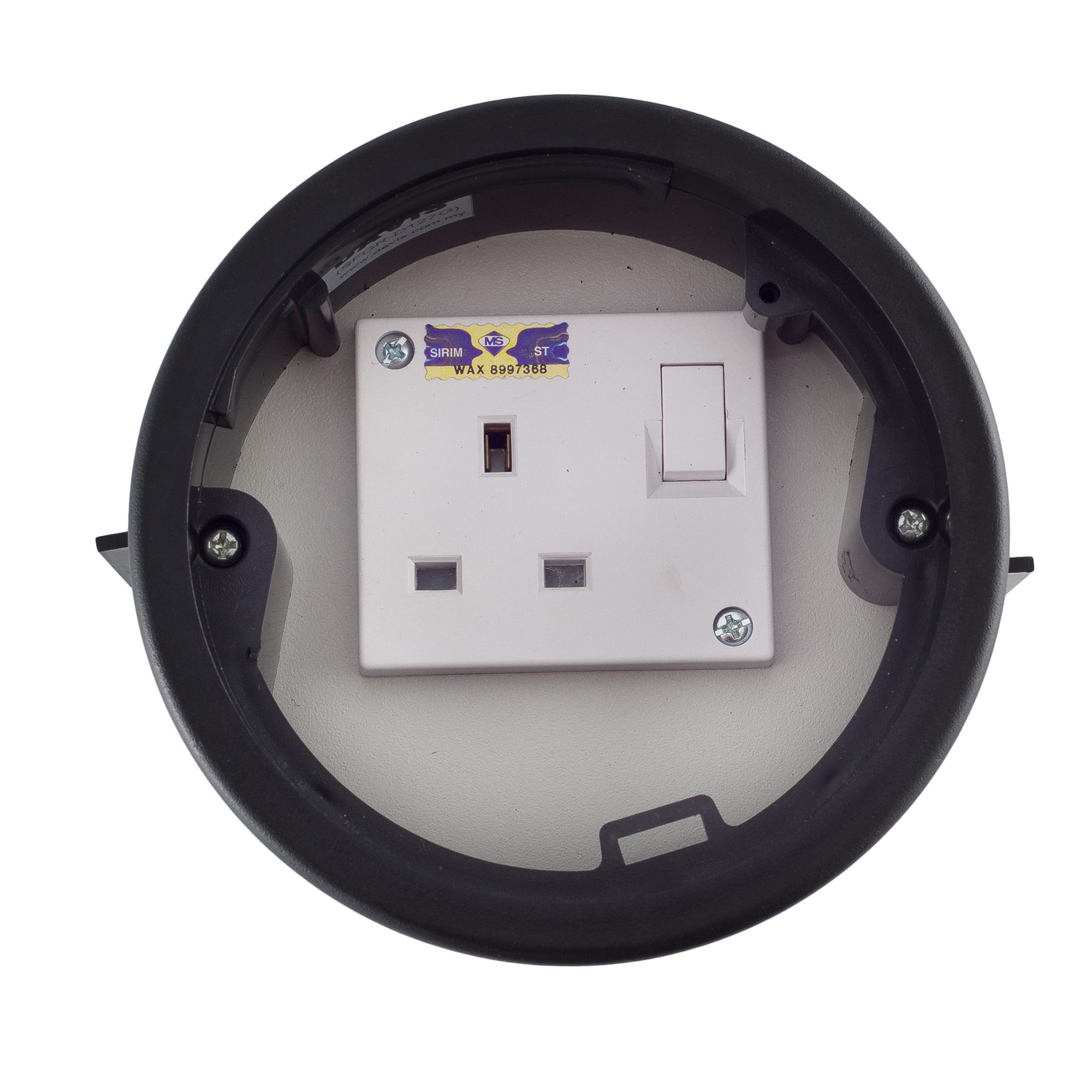

| SFGR-D127G/S | 5″ Service Access Grommet c/w 1 Gang 13A Switched Socket Outlet |

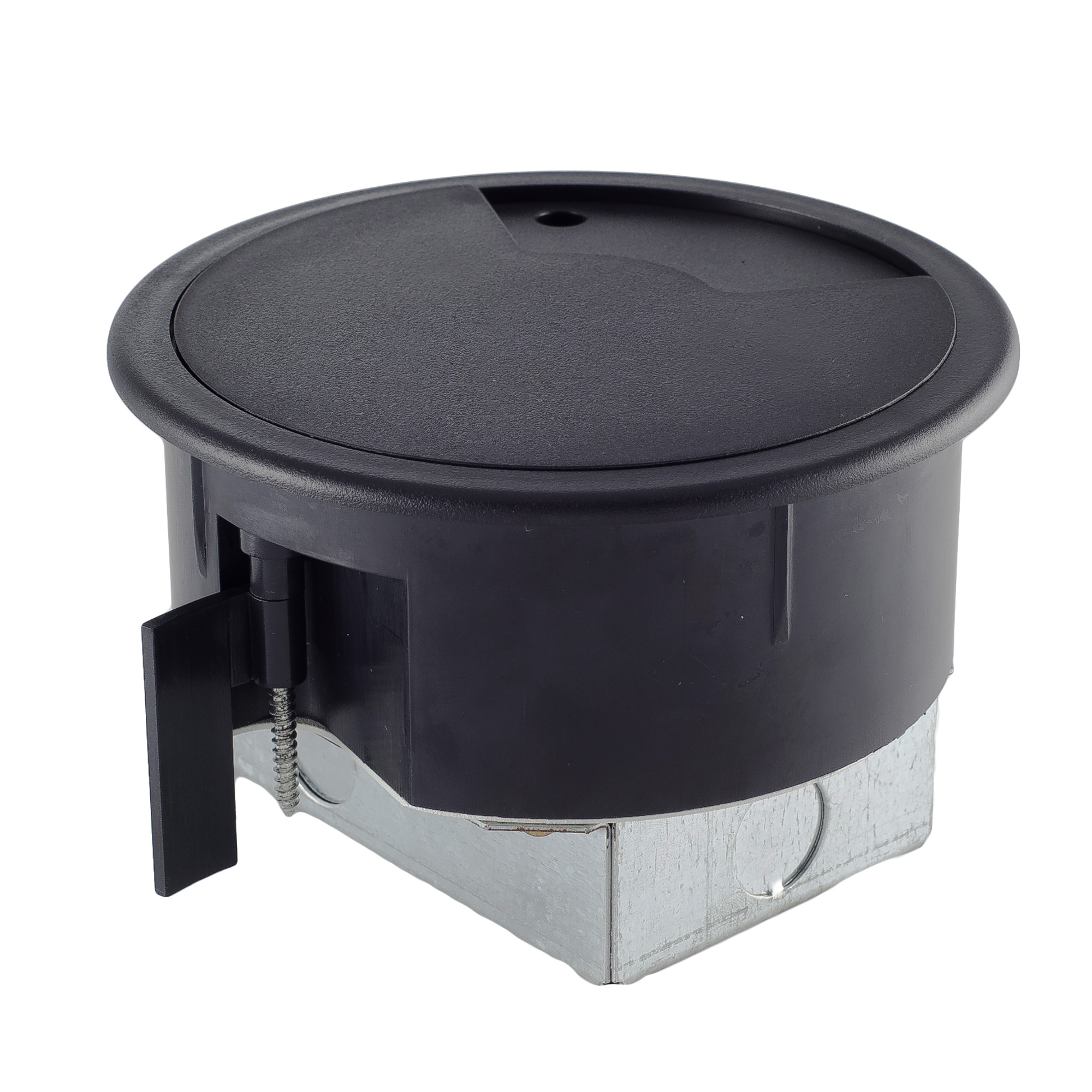

| SFGR-D127G/R | 5″ Service Access Grommet c/w 2 nos. RJ45 / RJ11 Knock out Hole |

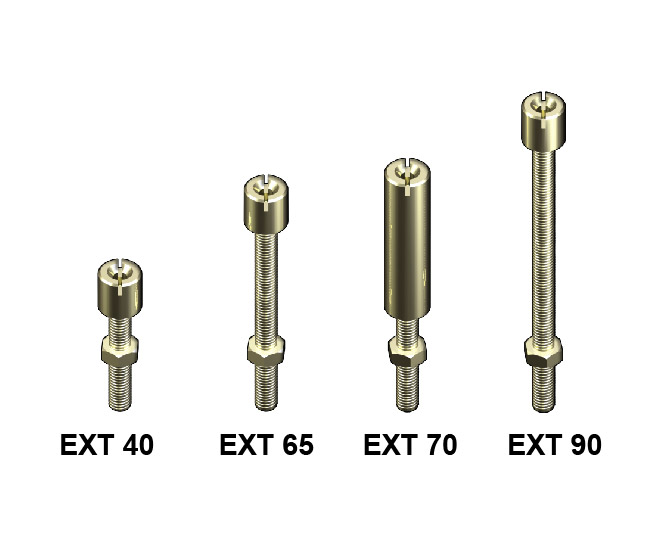

Underfloor Box Extension Screw Terminals
| Model | Description* |
| EXT 70 + EXT 65 | 120 – 160mm |
| EXT 90 | 96 – 118mm |
| EXT 65 | 71 – 93mm |
| EXT 40 | STANDARD ( 50 – 68mm ) |
* screed depth for 25mm trunking entry

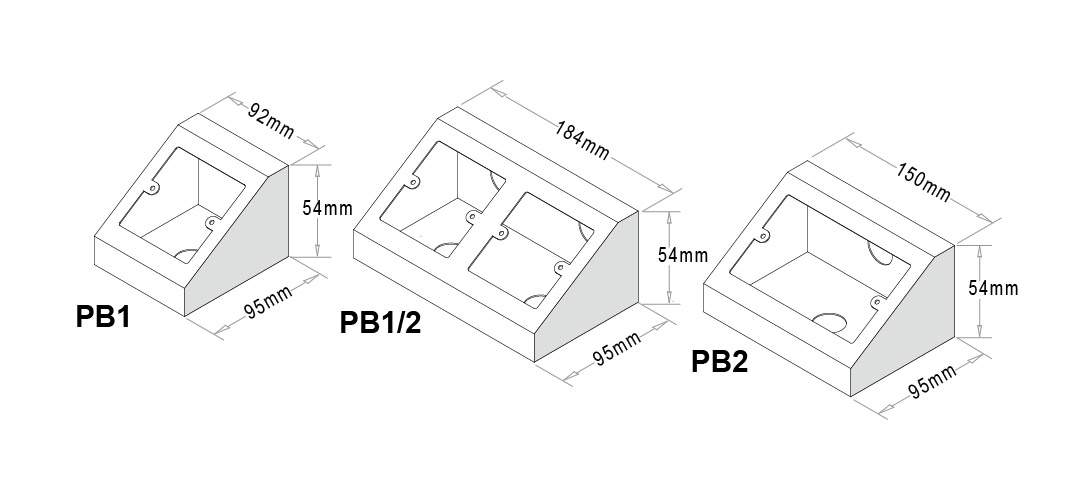

Floor Pedestal Boxes
DAVIS Pedestal Boxes are available in 3 designs : 1 gang, 2 x 1 gang and 2 gang for mounting onto Underfloor or Flushfloor Trunkings. These are constructed from pre-galvanized steel sheets with epoxy finish. The socket outlet fixing is in accordance with BS 4662.

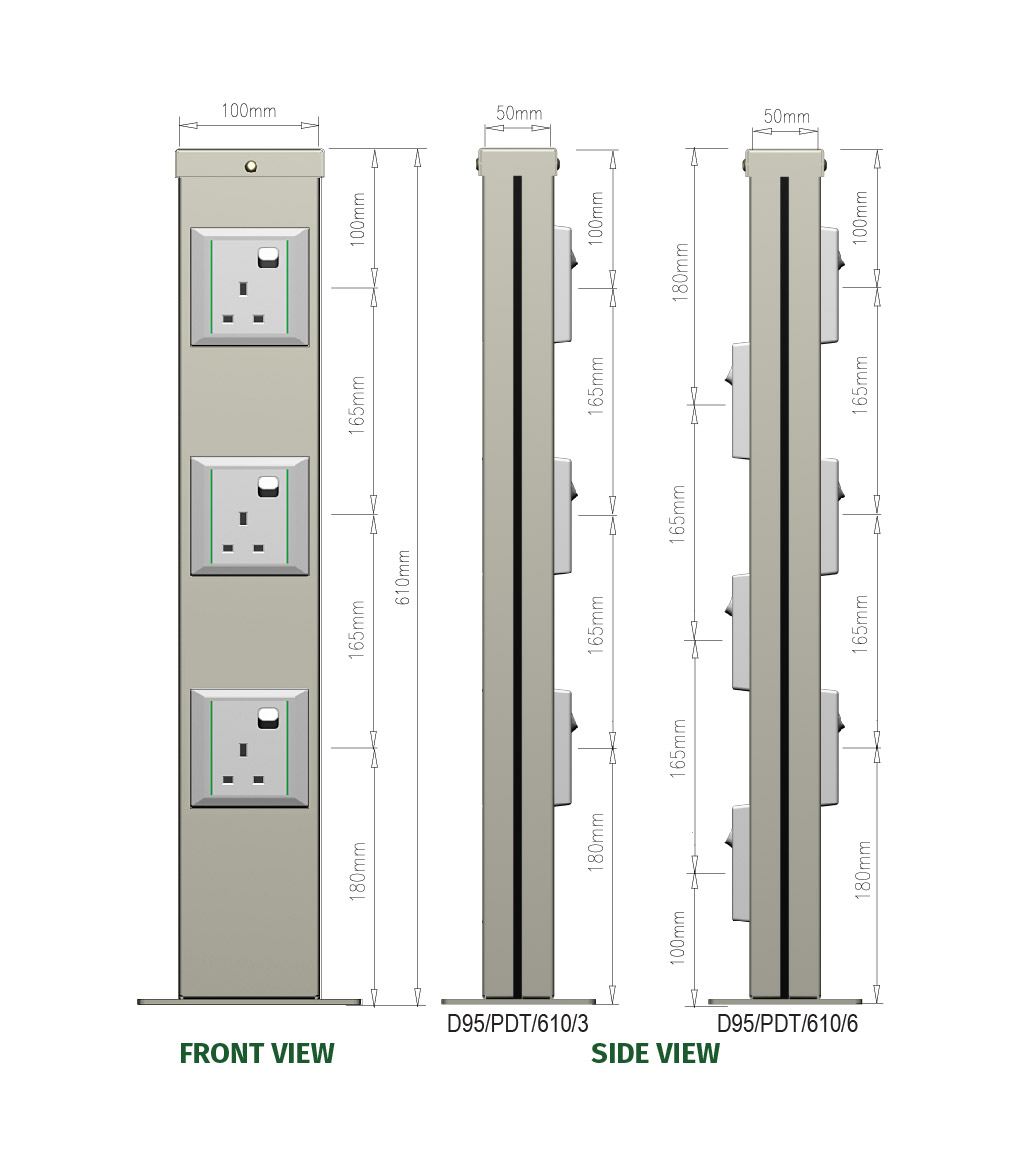

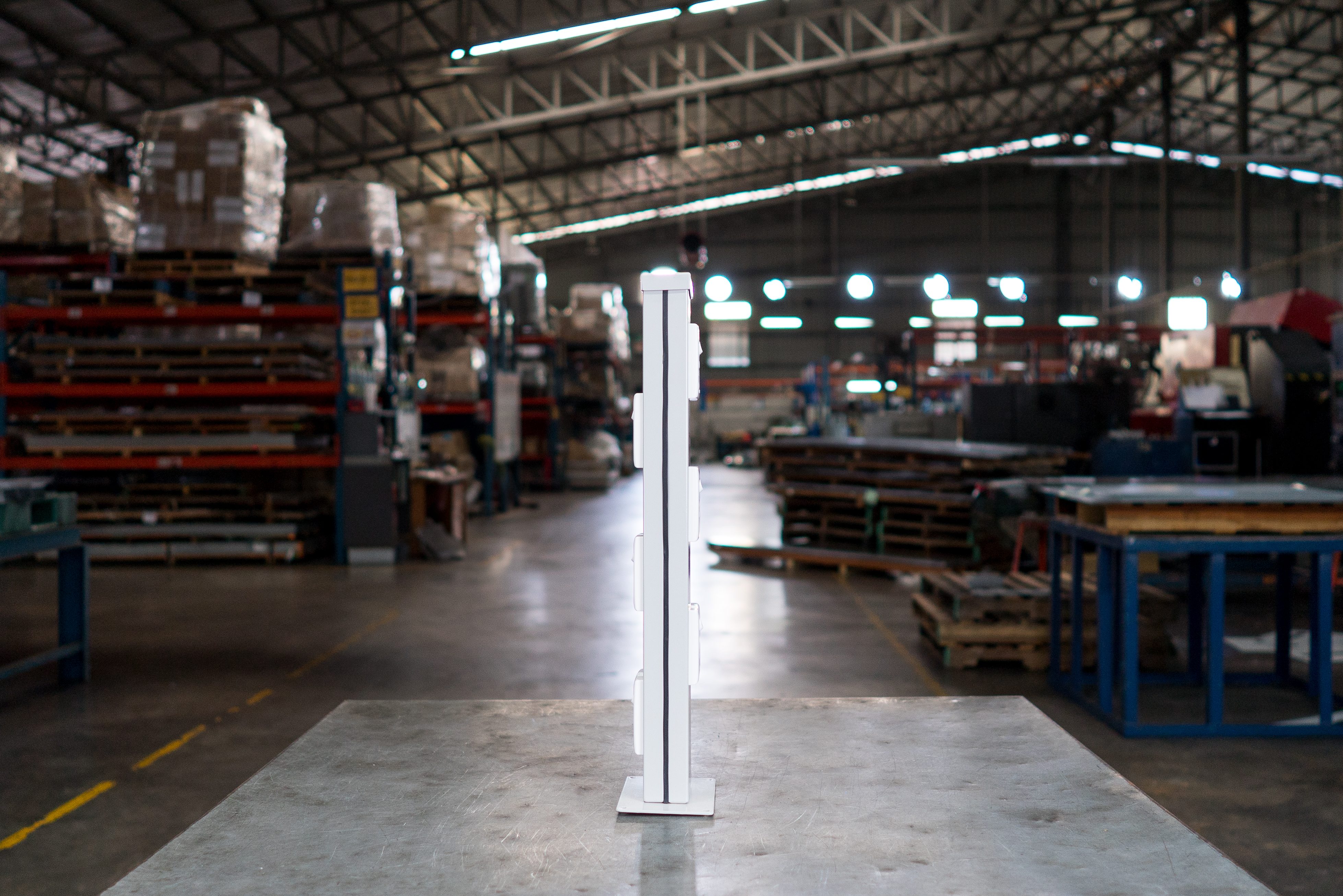

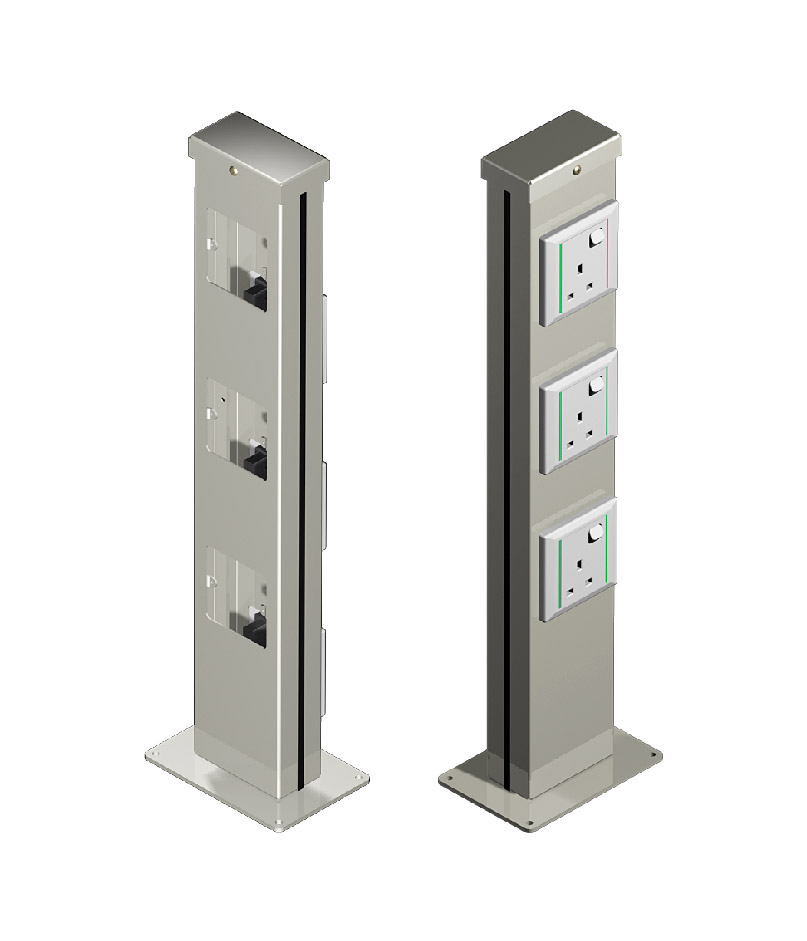

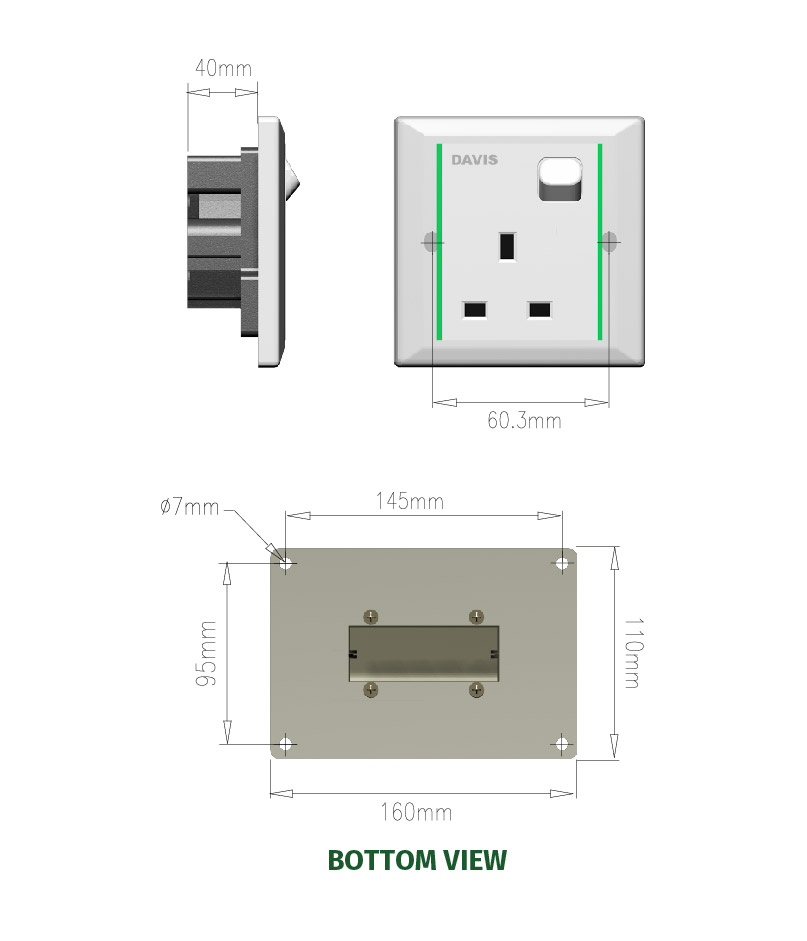

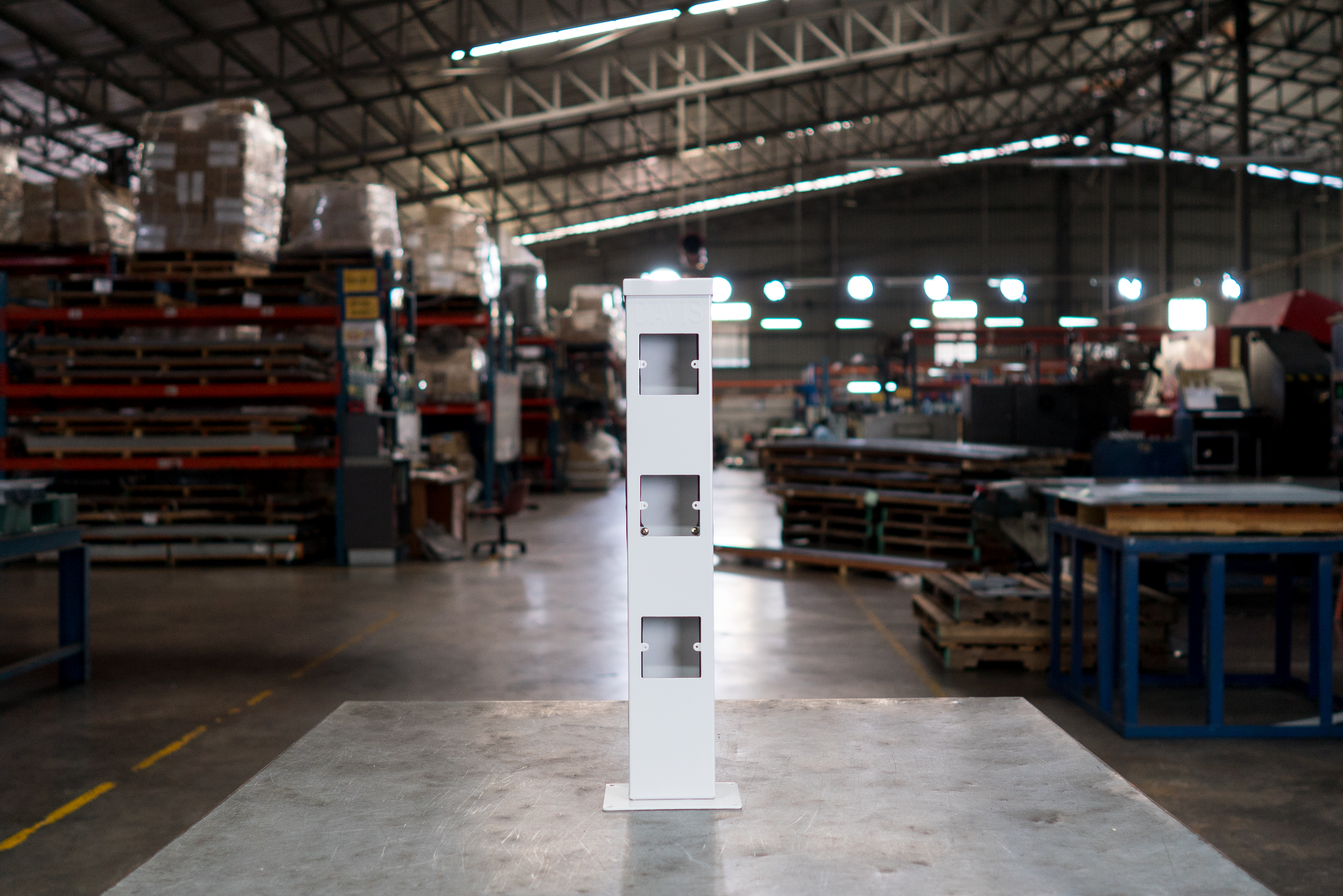

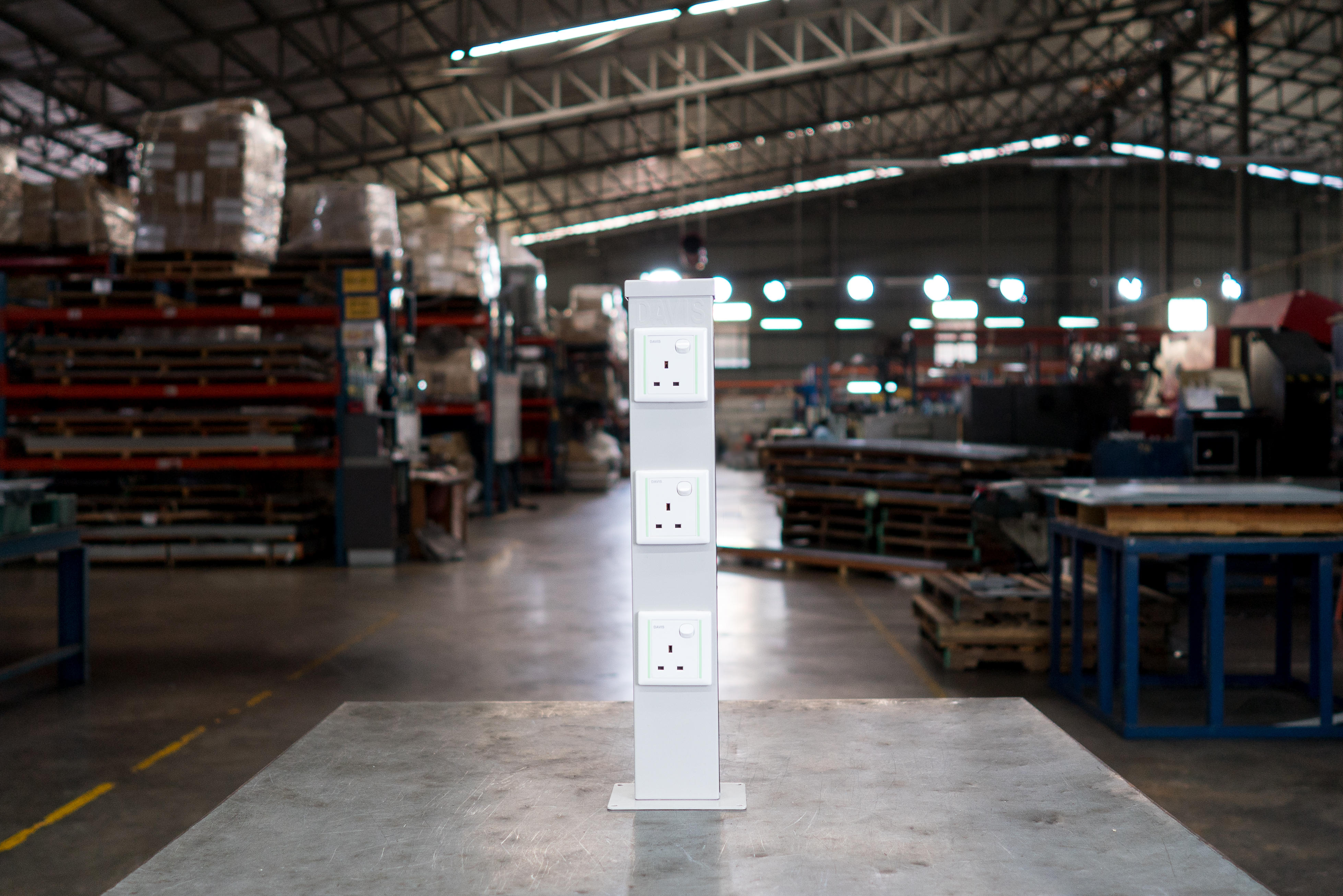

Power Distribution Tower
| Model | Description |
| D95/PDT/610/3 | 1 Gang Power Socket Tower (100W x 50D x 610H) 3 Outlets |
| D95/PDT/610/6 | 1 Gang Power Socket Tower (100W x 50D x 610H) 6 Outlets |
Interested in a Product Catalogue?
Includes:
- product details
- detailed technical specifications
- layout designs
- product images
- additional accessories

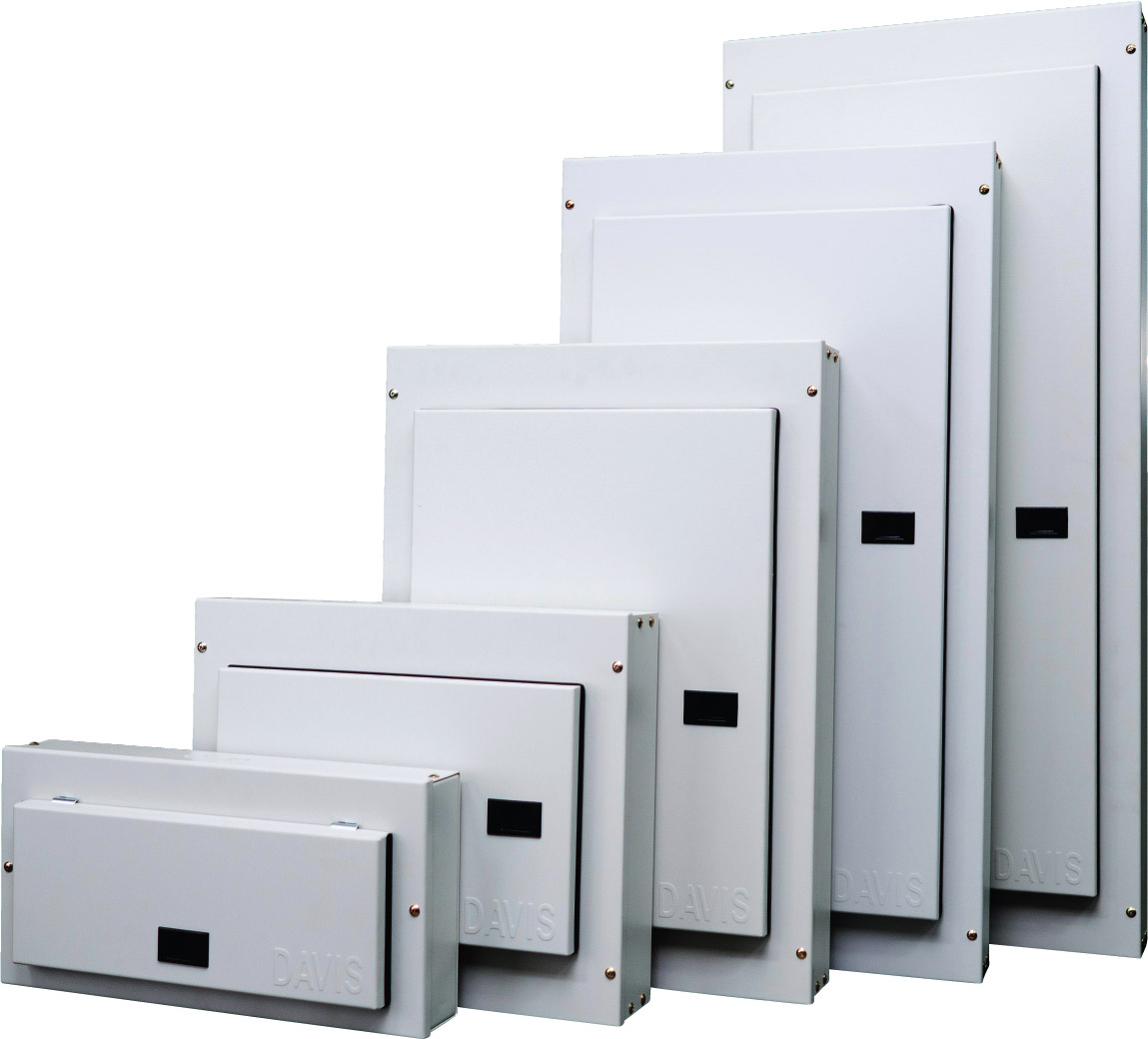

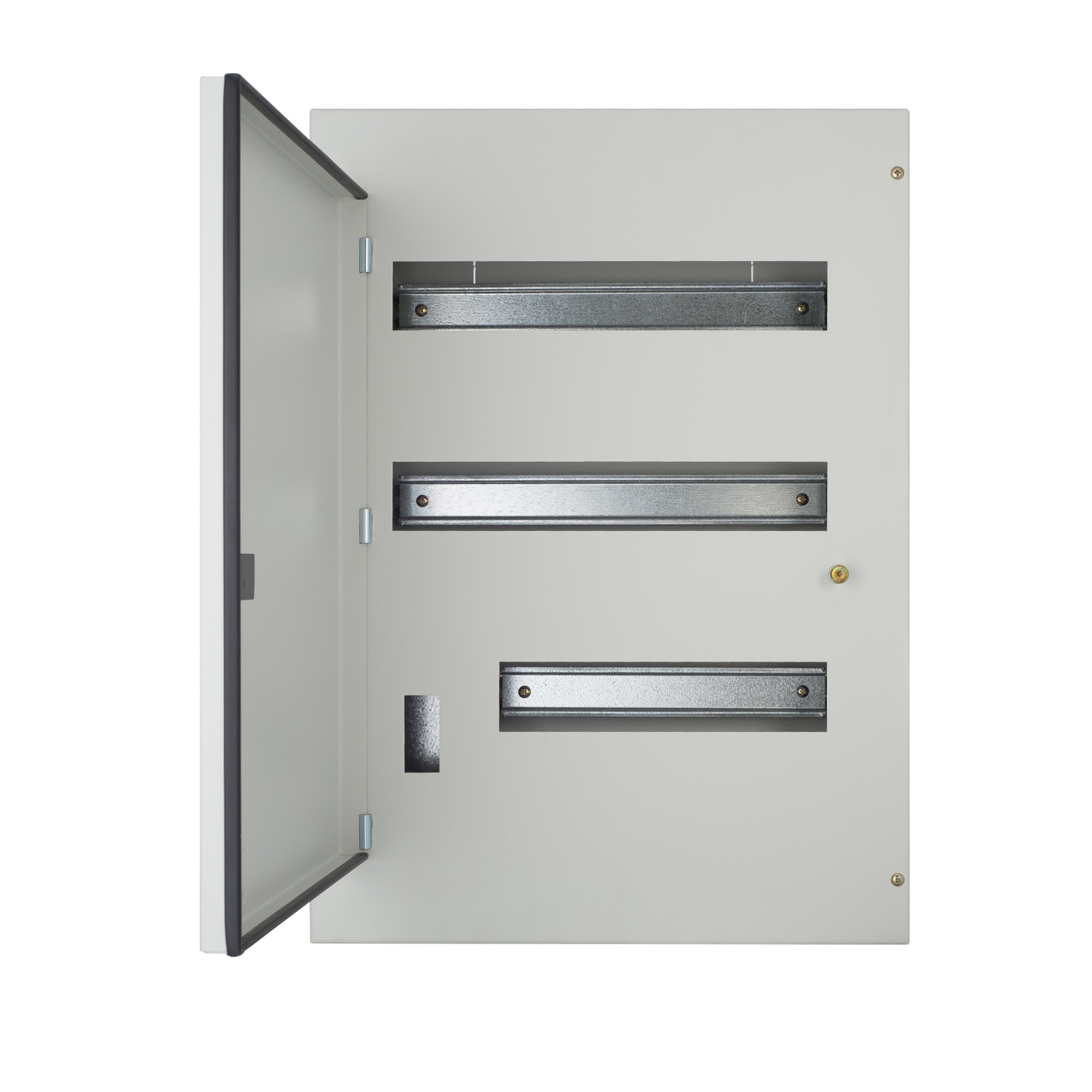

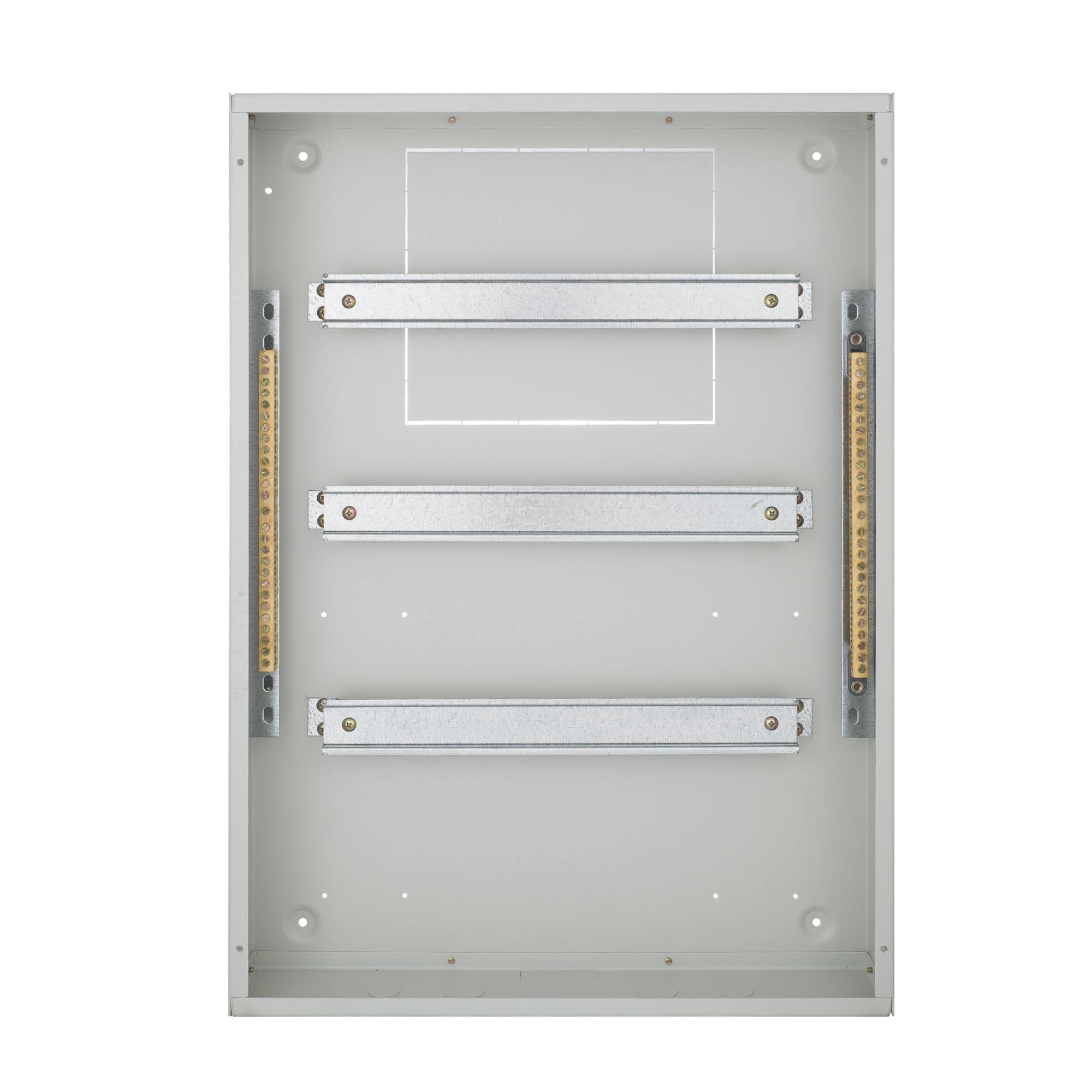

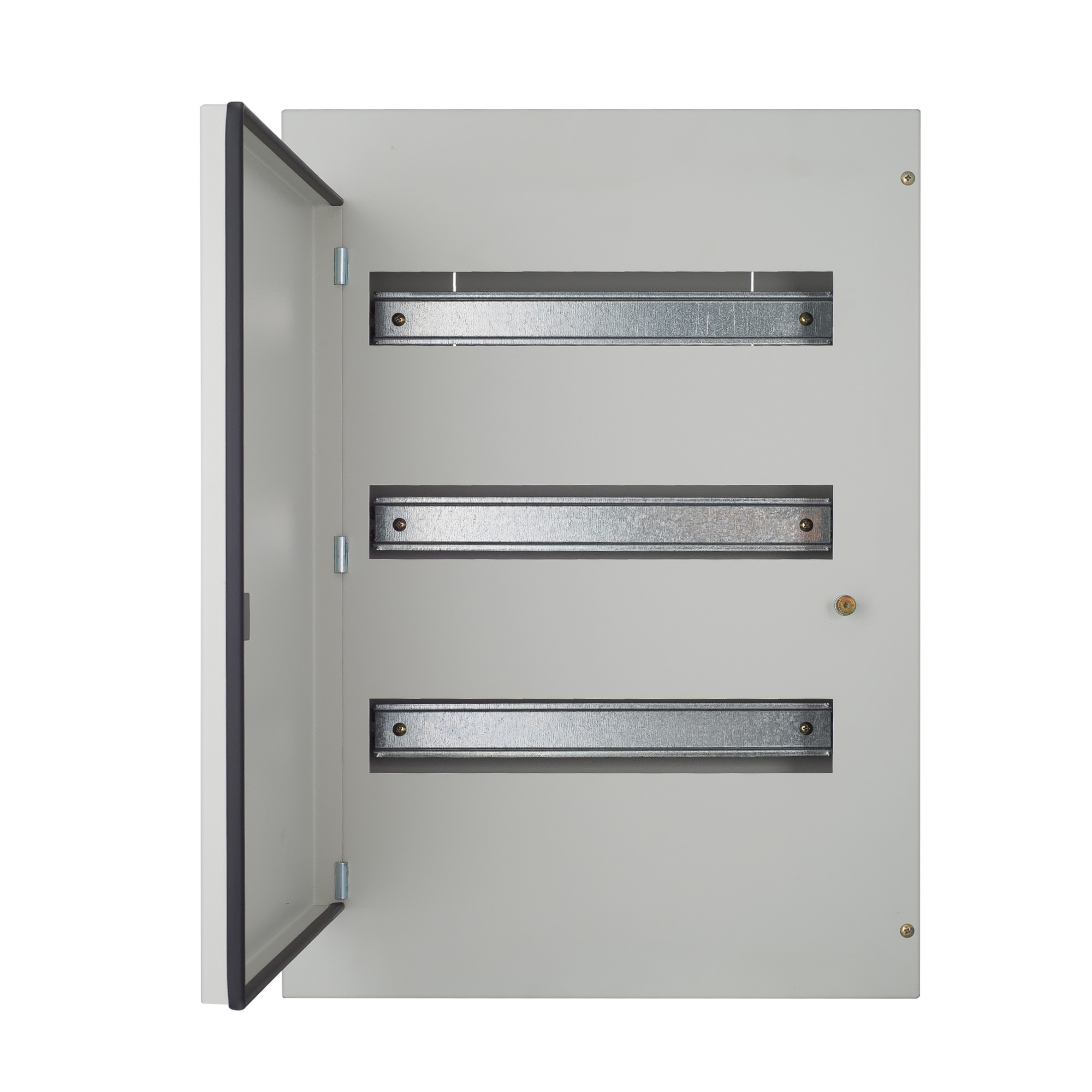

Metalclad Distribution Board
DB Series: Suitable to fit Isolator, Switchfuse or MCB as main switch

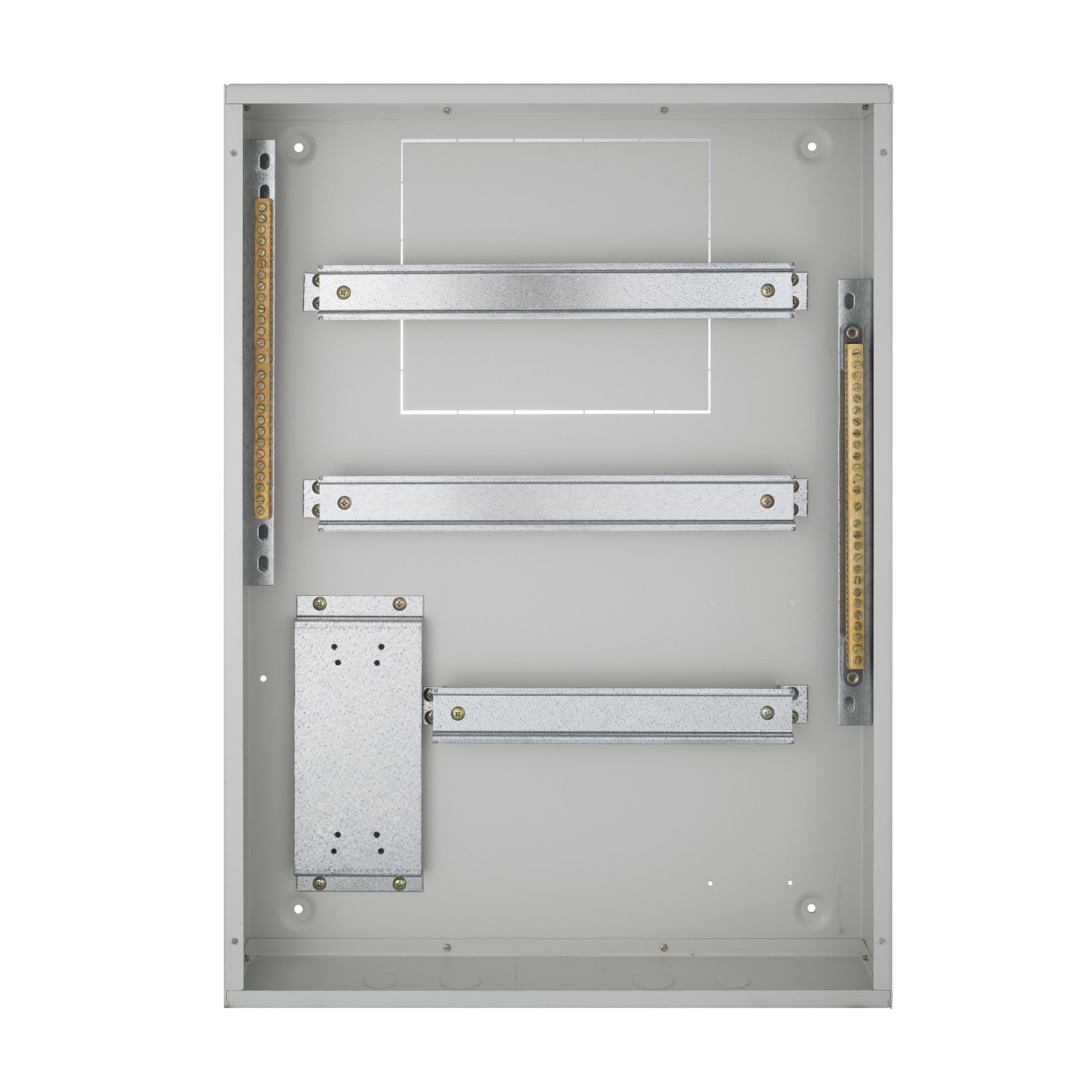

DBM Series: Suitable to fit MCCB as main switch

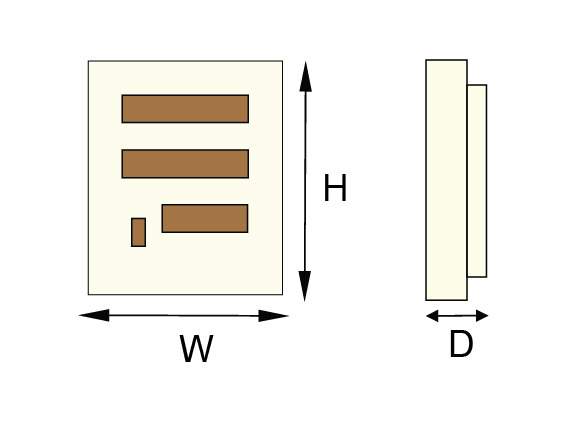

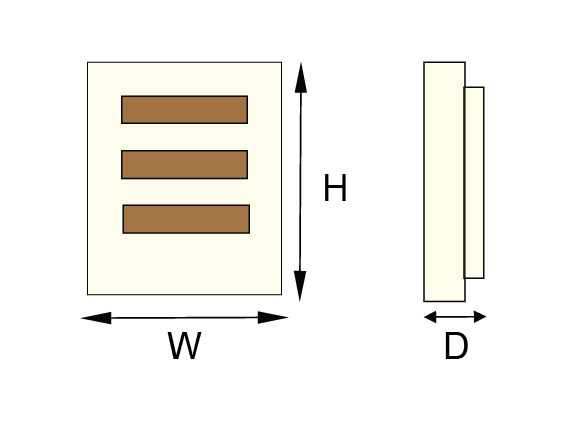

| No. of Row | H (mm) | W (mm) | D (mm) | DB Series | DBM Series | ||
| Model | No. of way | Model | No. of way | ||||
| 1 | 205 | 335 | 85 | DB115 | 15 | – | – |
| 1 | 205 | 405 | 85 | DB118 | 18 | – | – |
| 1 | 205 | 475 | 85 | DB122 | 22 | – | – |
| 2 | 335 | 405 | 110 | DB216 | 32 | DBM216 | 22 |
| 3 | 565 | 405 | 110 | DB316 | 48 | DBM316 | 43 |
| 4 | 750 | 405 | 110 | DB416 | 64 | DBM416 | 59 |
| 5 | 885 | 405 | 110 | DB516 | 80 | DBM516 | 75 |

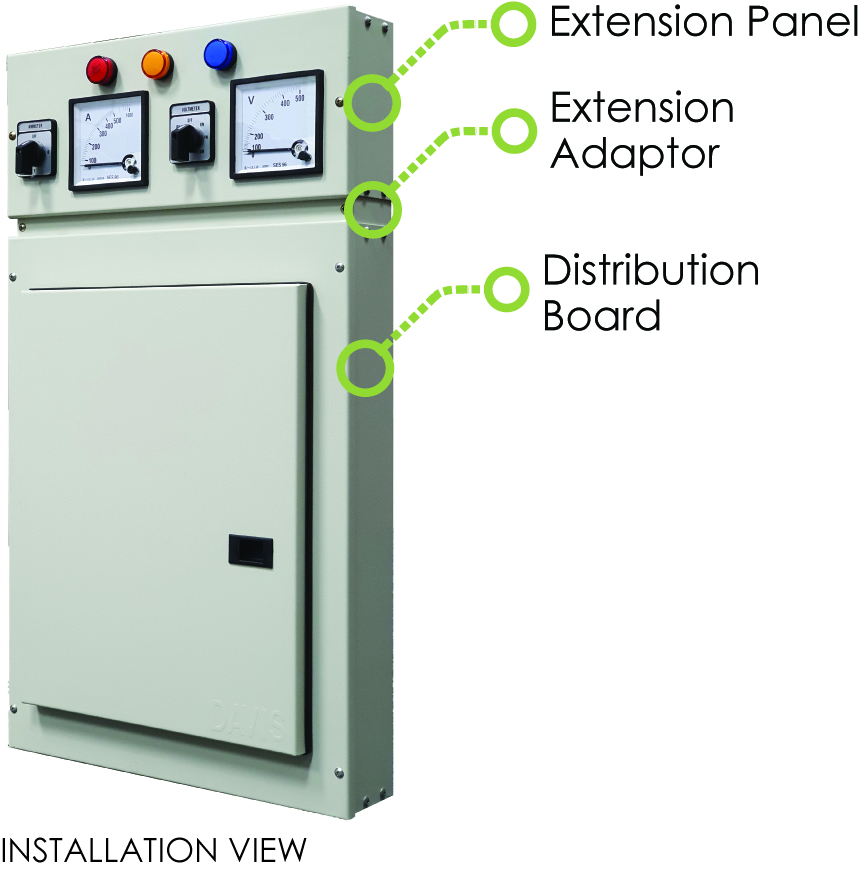

Distribution Board Extension Panels
| Extension Panel Model | H (mm) | W (mm) | D (mm) | ||||
| DBESM1 | 178 | 405 | 110 | ||||
| DBESM2 | 213 | 405 | 110 | ||||
| DBEL | 108 | 405 | 110 | ||||
| DBEA | 50 | 398 | 104 | ||||
